The SiO2 abundance on the surfaces of the Moon and Mercury

Abstract

The SiO₂ abundance on rocky planetary surfaces is a key indicator for planetary crust composition and magmatic evolution. The Christiansen Feature (CF) in the mid-infrared provides a mineralogically grounded proxy for the abundance of SiO₂. Here, we present a new experimental calibration based on synthetic glasses with SiO₂ concentrations from 0.5 wt.% to 97.6 wt.% SiO₂. The CF position shows a strong dependence on the SiO₂ concentration, best described by a second-order polynomial (R² = 0.957). To test the reliability of the new calibration we apply it to Diviner-derived CF data for the surface of the Moon to produce a global map of SiO₂ on the lunar surface. The results reproduce the mare-highland bimodality and agree well with independent constraints from all lunar sample-return sites. We derive SiO₂ abundances in high-silica regions, including Gruithuisen, Hansteen Alpha, and Lassell Massif with up to 76 wt.% SiO₂. This is the first study that quantitatively derives the high SiO₂ abundances expected in these high-silica regions with an independent compositional calibration. Finally, the new calibration allows the determination of SiO₂ on the surface of Mercury. Using an existing Earth-based CF measurement, we obtain a low abundance of ~37 wt.% SiO₂. High spectral and spatial resolution observations of Mercury by the Mercury Radiometer and Thermal Infrared Spectrometer (MERTIS) on the BepiColombo mission will allow a global application of this new approach, which may be extended to other planetary bodies in the future.

Introduction

The SiO₂ concentration in planetary surface materials is a fundamental geochemical indicator used to infer the nature and evolution of planetary crusts. It is a first-order measure of rock composition and the definition of lithologies, correlates with key mineral assemblages, and serves as a proxy for mineralogy and the degree of magmatic differentiation (Salisbury & Walter, 1989). However, the determination of the SiO₂ concentration on the Moon and Mercury by remote sensing observations has proven challenging.

Previously, the Lunar Prospector used gamma-ray spectroscopy to map lunar surface composition and obtained a spatial resolution of 2° per pixel. However, the Lunar Prospector SiO₂ data did not overlap with sample data, showing systematic shifts to lower values (Prettyman et al., 2006). More recently, a machine learning approach based on SELENE multiband imager data and constrained by Chang’e-5 sample compositions was used to generate new compositional maps of the Moon (Yang et al., 2023). Ma et al. (2022, 2023) used Lunar Reconnaissance Orbiter (LRO) Diviner data to determine lunar surface composition maps. A convolutional neural network based on data in the visible and mid-infrared spectral range was used to obtain a lunar SiO₂ map with good agreement with previous gamma-ray observations, but which fails to detect the high-silica regions (Chen et al., 2025). In this study we use a different approach and present a new independently calibrated relationship of SiO₂ abundance and the Christiansen Feature (CF) in the mid-infrared spectral range.

For Mercury, the X-ray spectrometer on the NASA MESSENGER mission constrained the surface composition (Nittler et al., 2011, 2018, 2020). The instrument determined element ratios, which were then used to calculate absolute concentrations of oxides including SiO₂. Similarly, MIXS (Mercury Imaging X-Ray Spectrometer) on the BepiColombo (Benkhoff et al., 2021) mission will primarily provide element ratios for the surface of Mercury (Bunce et al., 2020). In addition, MERTIS (MErcury Radiometer and Thermal Infrared Spectrometer) will map the surface of Mercury in the mid-infrared spectral range of 7 to 14 µm and constrain the surface mineralogy of the planet, including measurement of the CF with high spectral resolution (Hiesinger et al., 2020).

Here, we present a significantly improved calibration of an independent measure for the SiO₂ concentration in planetary silicate surface materials, based on the position of the CF in the mid-infrared spectral range. The CF is defined as the reflectance minimum or emission maximum, and occurs where the refractive index of a material reaches unity. The CF has previously been suggested to linearly depend on the chemical composition of silicates (Conel, 1969; Cooper et al., 2002, Kumari et al., 2025, Pisello et al., 2022, Weber et al., 2023).

Multiple factors influence the CF position, including pressure environment, temperature, irradiation, and grain size, with decreasing pressure and temperature shifting the CF to lower wavelengths, while increased solar irradiation and smaller grain sizes (particularly 0-32 µm fractions) shift it to higher wavelengths (Donaldson Hanna et al., 2017; Logan & Hunt, 1970; Logan et al., 1973; Henderson and Jakosky, 1997; Shirley & Glotch, 2019; Donaldson Hanna et al., 2012). The effect of space weathering on the CF position remains debated (Kumari et al., 2024a), with Salisbury et al. (1997) and Lucey et al. (2017) reporting no significant correlation between the CF position and I_s/FeO, the standard measure for lunar soil maturity defined as the abundance of nanophase iron relative to the bulk FeO content. Furthermore, simulated micrometeorite bombardment in experiments does not lead to a shift in the CF (Weber et al., 2020). Since laboratory analysis of heterogeneous analogue material mixtures involves many parameters often counteracting each other, silicate glasses with broad compositional variations serve as ideal analogues to isolate and calibrate the compositional dependence of the CF position specifically, as no significant CF shifts are observed with varying grain size fractions or between different measurement methods (Morlok et al., 2017; Morlok et al., 2021; Morlok et al., 2022).

Our new approach, therefore, involves an extension of the compositional range to extreme SiO₂ contents, with the synthesis of glasses ranging from 0.5 wt.% to 97.6 wt.% SiO₂. Glasses are ideal analogue materials to study compositional variations on atmosphere-less planetary bodies such as the Moon and Mercury. They are highly abundant on the lunar surface formed by pyroclastic and effusive volcanism, impact processes, and space weathering (Morlok et al., 2021, Wilbur et al., 2025, Zhao et al., 2023).

Our approach allows a reliable compositional mapping for SiO₂ on the surface of the Moon, even based on data with very low spectral resolution provided by the three narrow-band channels of the Diviner instrument on the Lunar Reconnaissance Orbiter (Lucey et al., 2021). With this new calibration, the spectral measurement of the CF by MERTIS on the surface of Mercury will allow the independent quantification of SiO₂ on the planet’s surface.

Results and discussion

Calibration of the Christiansen Feature

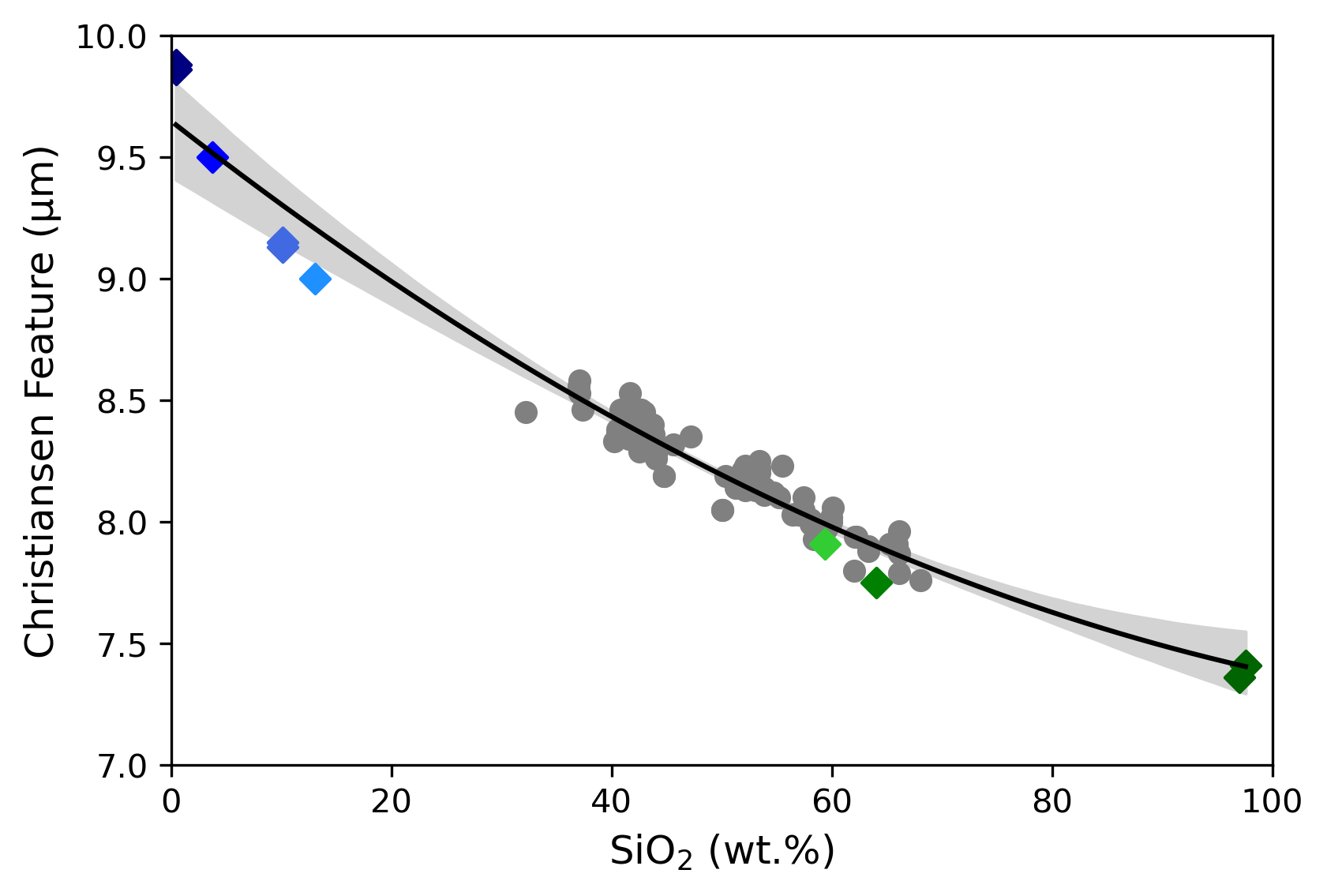

Figure 1: The CF position in µm as a function of the SiO₂ wt.% concentration in the glasses. Grey circles represent literature data. The black line with a grey error envelope represents the best fit second-order polynomial through all data including our new synthetic glasses and the literature values. Note that we use an internally consistent dataset with only glass samples measured by reflectance micro-FTIR. The R² value of the best fit is 0.957.

The position of the CF shows the best resolved systematic spectral shift as a function of the SiO₂ concentration (Fig. 1). The positions of the CF are listed in Table S1 and increase with decreasing SiO₂ from 7.4 µm at 97.6 wt.% to 9.9 µm at 0.5 wt.% SiO₂. Full FTIR and Raman spectra are shown in the supplementary Figures S2 and S3 (see methods for details). For the calibration we include literature data of CF positions measured for planetary analogue glasses, that were measured by micro FTIR specular reflectance on polished surfaces (Haupt et al., 2026; Morlok et al., 2017, 2020, 2021). The data are chosen for pure glasses without crystallization features, with the same spectral resolution. This guarantees identical analytical conditions to avoid features that do not come from the compositional effect, which we calibrate for. The best fit to the data in wt.% of SiO₂ is a 2^nd order polynomial:

\[CF = 1.28 \times 10^{- 4}\left \lbrack {\text {SiO}}_{2} \right \rbrack ^{2} - 3.55 \times 10^{- 2}\left \lbrack {\text {SiO}}_{2} \right \rbrack + 9.649\]

with the CF wavelength in µm and an R² of 0.957 (Table S2). A linear fit, previously used to describe the SiO₂ dependence of CF (Cooper et al., 2002) does not sufficiently account for the observations at extremely low or high SiO₂ concentrations in the glasses. Cooper et al. (2002) obtained an R² = 0.772 for their dataset, whereas our internally consistent dataset has an R² = 0.926 when fitted with a linear function. Finally, the best fit is achieved for the relationship of CF with the molar concentration of SiO₂ in the glasses using a 2^nd order polynomial (R² = 0.966). From the scatter in our data, we estimate an uncertainty for the calibration of ± 3.4 wt.% SiO₂.

The spectral range of 7 to 14 µm in the mid-infrared is sensitive to the SiO₂ concentration in silicate glasses due to the dependence on Si-O bond vibrations, both in emission and in reflectance spectroscopy (Lee et al., 2010). This is of particular interest for remote sensing observations, where direct in-situ measurements of chemical compositions are not possible or limited, such as the observation of airless planetary bodies, including the surfaces of asteroids, Mercury, or the Moon. Here, we test the new calibration of the SiO₂-CF relationship by applying it to a lunar CF dataset and compare the outcome to compositional data from returned lunar samples.

SiO2 on the lunar surface

The Diviner spectrometer mapped the surface of the Moon with three narrow-band channels near 8 µm, which allowed the calculation of the CF spectral positions (Donaldson Hanna et al., 2017; Greenhagen et al., 2010; Lucey et al., 2017). Here, we use a global CF dataset for the Moon, which was corrected for illumination, topography, geometry, and space weathering effects by Lucey et al. (2021) as shown in their Figure 8 and openly available at https://doi.org/10.5281/zenodo.4558194. The map has a resolution of 32 pixels per degree, covering all longitudes and ±70° latitude. Lucey et al. (2021) noted that some artifacts remained at high latitudes (> 50°), which remain notable in the global map of SiO₂ wt.% at > ±50° latitude, calculated using the newly calibrated 2^nd order polynomial from Table S2. Lucey et al. (2021) estimate an uncertainty of 0.02 µm for their corrected CF wavelengths. In the compositional range of mare basalts and anorthosites this translates to an uncertainty of 1 wt.% SiO₂.

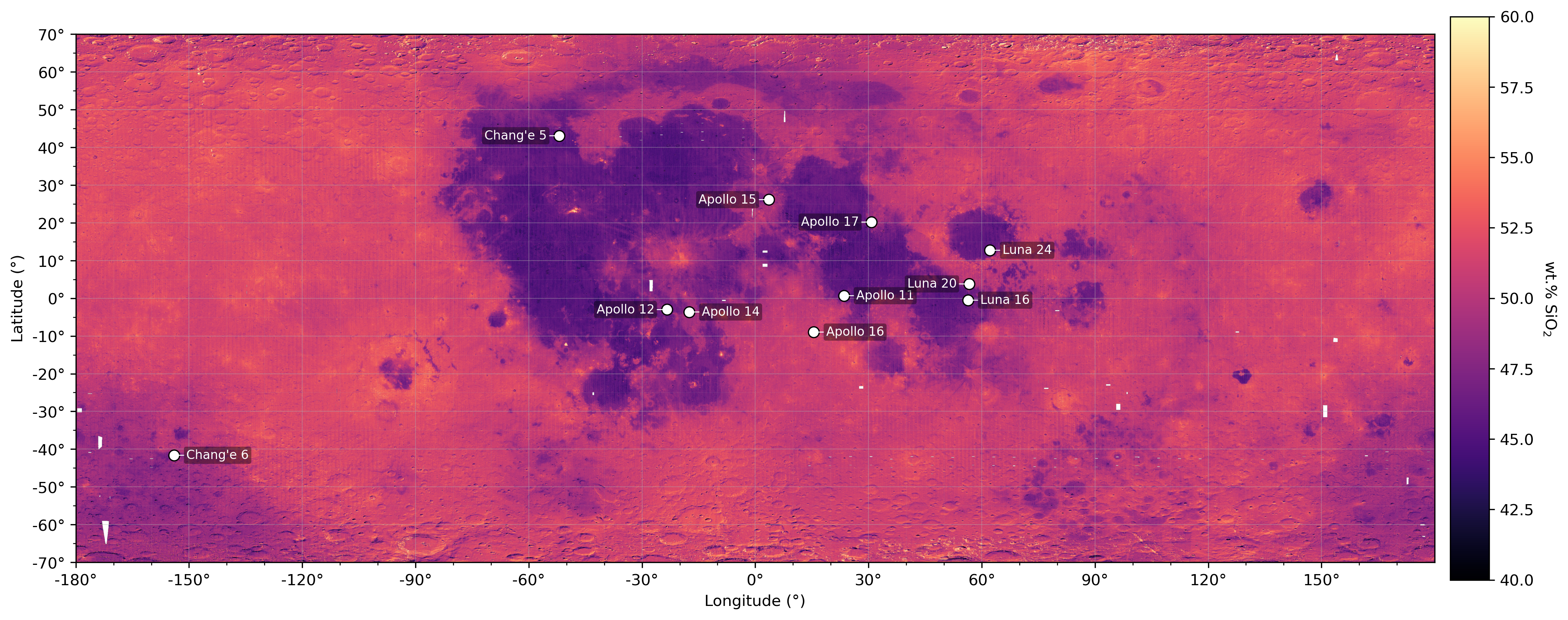

Figure 2: Calculated SiO₂ wt.% surface abundance on the Moon with the Apollo, Luna, and Chang’e landing sites, from which these missions returned samples.

Comparison with returned samples from lunar missions

The calculated SiO₂ wt.% concentration on the surface of the Moon follows a bimodal distribution (Fig. 2), which is well established due to the presence of lunar highlands and mare basalts. Here, the concentration of SiO₂ quantifies this bimodality with mean mare terrain concentrations of 45.8 ± 0.9 wt.% SiO₂ and the highland regions with 50.9 ± 1.6 wt.% SiO₂. To ground-truth our calibration we take a closer look at the landing sites from which we have returned samles (Apollo, Luna, Chang’e). For each landing site we calculate average SiO₂ concentrations over a circular area with a radius of 0.5°, averaging over ~800 pixels per landing site (Table S3). A comparison of the calculated landing site compositions and the returned samples is shown for the Apollo missions in the supplementary figure S4, and for the Chang’e and Luna samples in S5.

The calculated average mare SiO₂ concentration is best represented by the landing sites of Apollo 11, 12, Luna 16, 24, and Chang’e 5, whereas the highland regions are best represented by the Apollo 16 landing site (Table S3, Figs. S4 & S5). Here, we make a comparison of our calculated regional landing site SiO₂ concentrations and reported data for returned lunar samples from these sites providing ground truth. The average reported soil composition of the Apollo 11 landing site has 42.0 ± 0.3 wt.% SiO₂ (Heiken et al., 1991) and average mare basalt compositions have 41.3 ± 2.5 SiO₂ wt.% (Lunar Sample Compendium, 2012). Returned soil and basalt rock samples have similar SiO₂ concentrations and are ~4 wt.% below those inferred for the Apollo 11 landing site radius based on our calculations (46.2 ± 0.7 wt.%). However, we calculate average compositions over a much larger area of ~70’000 km² with a radius of 0.5°. This larger region is likely influenced by higher SiO₂ abundances in the highland terranes south of Mare Tranquilitatis. More than 30% of the SiO₂ in Apollo 11 regolith has elevated SiO₂ abundances, including feldspathic upper crust and KREEP materials. Furthermore, the Apollo 11 landing site is affected by crater rays from Theophilius crater 380 km south-south-east in highland terrane (Korotev & Gillis, 2001).

For Apollo 12, Apollo 14, and Apollo 15 we obtain very good agreements between the calculated SiO₂ concentrations at the landing sites (Table S3, Fig. S4) and average soil compositions with 46.3 wt.% (Apollo 12), 48.1 wt.% (Apollo 14), and 46.8 wt.% (Apollo 15) respectively (Heiken et al., 1991). On the other hand, we obtain a regional SiO₂ concentration at the Apollo 16 site of 51 ± 0.9 wt.%, which is significantly higher than the average soil returned by Apollo 16 at 45 wt.% SiO₂ (Heiken et al., 1991). However, local highland basalts (67559, 67747, 67945) at the Apollo 16 site have elevated SiO₂ contents with an average of 47.2 ± 2.2 wt.% (Lunar Sample Compendium, 2012). The high calculated SiO₂ concentration derived for the Apollo 16 landing site region and the highland regions in general, suggests that previous models may have underestimated the abundance of high-Mg suite lithologies such as norites in these terranes. The Apollo 17 landing site shows the largest compositional diversity in calculated SiO₂ and we determine 48.5 ± 1.5 wt.% (Table S3). This is also reflected by the compositional variability of the returned Apollo 17 samples, with an average soil composition of 43.2 wt.% SiO₂ (Heiken et al., 1991) compared to an average basalt composition of only 38.9 ± 1.2 wt.%, based on samples compiled in the “Lunar Sample Compendium” (2012). However, abundant impact melt breccias have higher SiO₂ contents of 46.6 ± 1.6 wt.%. The returned samples also include norites with 49.4 ± 1.8 wt.%, contributing to the compositional spread and the higher SiO₂ abundance at the landing site, which we determined.

The newly determined SiO₂ abundance at the Luna 16 landing site, with 45.7 ± 0.6 wt.%, is similar to Apollo 11, and falls in the range of compositions reported for Luna 16 fragments, including igneous, microbreccia and lithic fragments (Keil et al., 1972). The Luna 20 landing site region has a SiO₂ concentration of 49.7 ± 0.8 wt.% typical for highland terranes, whereas Luna 24 has 45.6 ± 0.7 wt.% and is representative of average mare terranes and in excellent agreement with average Luna 24 bulk lithologies at 45.7 ± 1.5 wt.% (Taylor et al., 1978). For the Chang’e 5 landing site area we obtain 45.9 ± 0.6 wt.% SiO₂, which is higher than reported soil compositions of 42.2 ± 0.3 wt.% (Li et al., 2022) or 41.3 ± 1.5 wt.% (Zong et al., 2022), but in the range of mare basalt fragments with 41.8 ± 2.3 to 44.5 ± 3.8 wt.% SiO₂ (Boschi et al., 2023; Che et al., 2021) and pyroclastic glasses with 46.8 ± 0.5 wt.% SiO₂ (Wang et al., 2024). Finally, for Chang’e 6 we obtain 47.0 ± 0.7 wt.% SiO₂ (Table S3), in the range of soil compositions reported for the returned samples at 45.6 to 46 wt.% SiO₂ (Li et al., 2024) and significant contributions of non-mare noritic ejecta with 46.9 ± 0.2 wt.% SiO₂ (Wang et al., 2025).

Here, we compare our new calibration and calculated SiO₂ abundances on the Moon with other literature approaches (Fig. S6). First, we applied the linear CF-SiO₂ relationship from Kumari et al. (2025) to the same CF dataset by Lucey et al. (2021) to which we applied our new calibration. This approach yields a narrower bimodal distribution of SiO₂ compared to our calibration, with mare terrain SiO₂ concentrations of 48.3 ± 0.5 wt.% SiO₂ and the highland regions with 50.7 ± 0.7 wt.% SiO₂. The comparison with returned lunar samples shows that the linear CF-SiO₂ relationship from Kumari et al. (2025) results in systematically overestimated SiO₂ abundances for mare terrains in particular (Fig. S6). Second, we compare our calculated SiO₂ abundances to the model by Ma et al. (2025). The histograms show that their calculated SiO₂ concentrations are affected by model artefacts and do not show natural distributions, which fail to reproduce lunar sample compositions and underestimate SiO₂ concentrations (Fig. S6).

The significantly improved reproducibility of compositional ranges at landing sites for which returned samples are available, based on our new calibration, allows us to discuss the SiO₂ abundances in other lunar regions and surface features more reliably. For example, the pyroclastic Orientale ring dark mantle deposit (Weitz et al., 1998) is clearly apparent with lower SiO₂ concentrations relative to the surrounding highlands, south-west of the Orientale basin (Fig 2). We also find calculated SiO₂ abundances in the South Pole-Aitken basin (SPA) that are lower compared to the average highland terranes. This is in contrast to Chen et al. (2025) who find highest SiO₂ concentrations of up to 50 wt.% in the SPA. Notably, their observations for the SPA are also elevated relative to their Chang’e 6 reference. However, our comparison with Chang’e 6 samples suggest a very good agreement with our own model. The SPA is of particular petrological interest due to the thin lunar crust (Wieczorek et al., 2013) and potentially exposed lunar mantle lithologies (Moriarty et al., 2021). Due to the high southern latitude of the SPA the CF dataset is increasingly affected by remaining artefacts (Lucey et al., 2021), which is evident in the apparent topographic features of the SiO₂ map at latitudes > ± 45° (Fig. 2).

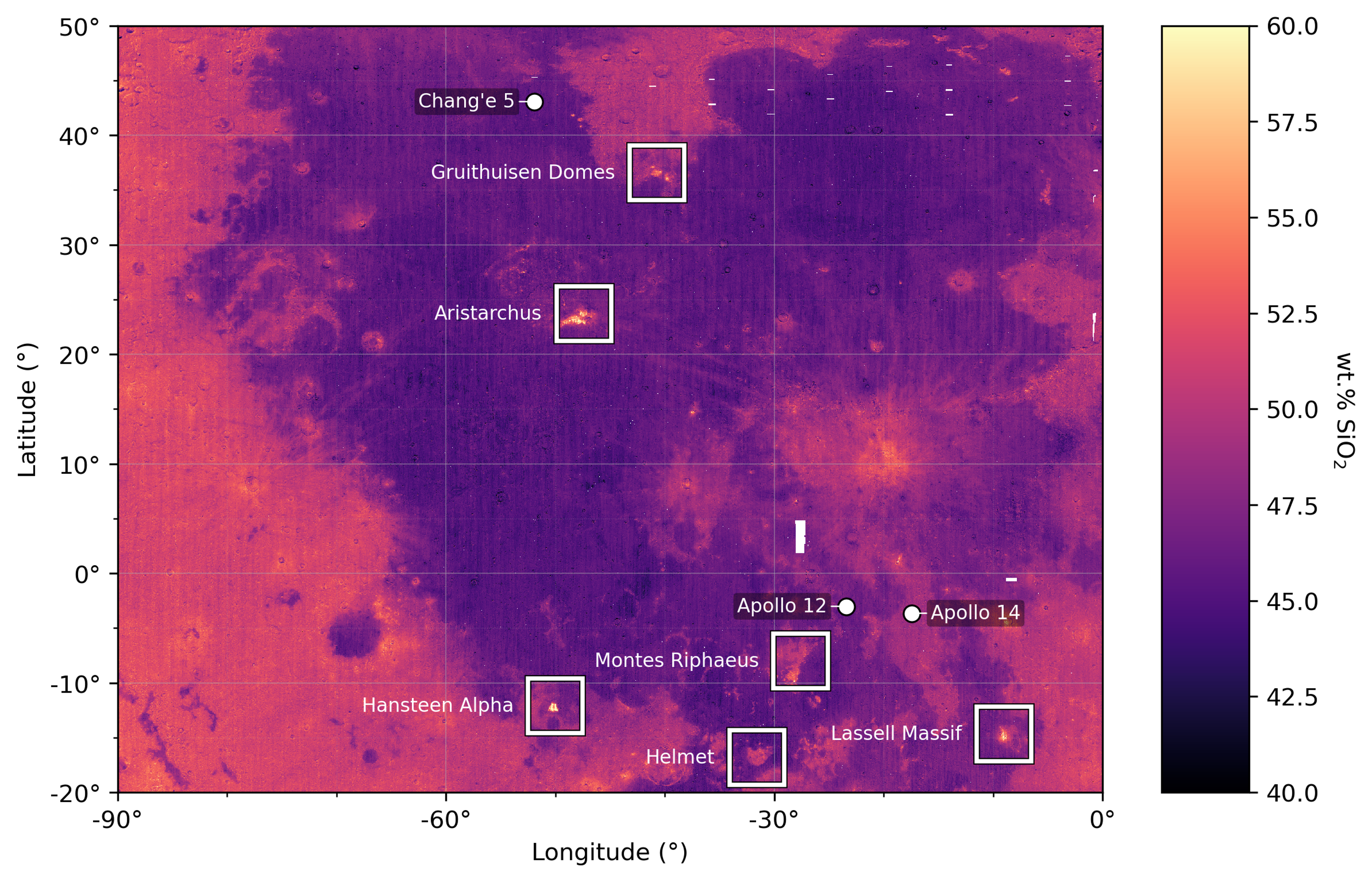

Figure 3: Calculated SiO₂ concentration map over the central mare region with highly silicic localities identified by Glotch et al. (2010). These silicic domes and craters exhibit SiO₂ concentrations of up to 76 wt.% at Lassell Massif.

SiO2 in highly silicic terranes

The calculated SiO₂ map reliably highlights highly silicic compositions in the central mare region, which were previously identified based on low wavelength CF (Glotch et al., 2010, Kumari et al., 2024b), shown in Figure 3. Based on the CF positions (Glotch et al., 2010) we obtain 49.7 wt.% SiO₂ for Helmet, 54.7 wt.% for Southern Montes Riphaeus, 60.0 wt.% for Hansteen Alpha, 62.5 wt.% for Gruithuisen Domes (\(\gamma {}\)), 74.2 wt.% for Aristarchus Crater, and 76.0 wt.% for the Lassell Massif. For the first time, we obtain quantitative SiO₂ concentrations for these exceptionally silicic localities. They are generally also depleted in FeO and TiO₂ and rich in Th (Hagerty et al., 2006). The silicic domes have received increased attention in the past years and have been suggested to be analogous features to terrestrial rhyolite domes (Ashley et al., 2016; Boyce et al., 2017; Glotch et al., 2021; Gullikson et al., 2016; Hawke et al., 2003; Qiu et al., 2022, 2023, 2025; Ravi et al., 2025). The highly silicic localities were not yet directly sampled by a mission, but there are examples of SiO₂-rich, even granitic grains and clasts in returned breccias with up to 75 wt.% SiO₂ (Rutherford et al., 1976; Seddio et al., 2013, 2014; Valencia et al., 2024; Warren et al., 1983).

The compositional variability in the samples of a given landing site have shown that a calibration of the SiO₂ abundance on these samples alone, for the extrapolation to the entire lunar surface via spectral observations (Chen et al., 2025; Ma et al., 2022; Yang et al., 2023) is not sufficiently reliable and require an independent calibration of the SiO₂ concentration on the CF position. The present study is the first that reliably quantifies the high-silica regions with compositions expected based on returned lunar granitic breccias, and which is independently validated via the returned samples suites (Figs. S4, S5). For example, the inversion models by Chen et al. (2025) and Ma et al. (2022), both partially based on the CF map from the Diviner mission, fail to reproduce the high SiO₂ abundances at Aristarchus, Gruithuisen Domes, Lassell Massif, and Hansteen. On the other hand, observations by the gamma-ray spectrometer on the Lunar Prospector had insufficient spatial resolution to detect these regions, and also failed to resolve SiO₂ in the South Pole-Aitken basin (Prettyman et al., 2006). Finally, the estimates of the SiO₂ distribution will strongly benefit in the future from CF measurements at high spectral resolution over the spectral range from 7 to 10 µm, and are an important constraint for future landed missions to the Moon, including human exploration and in-situ resource applications (Anand et al., 2012).

Implications for Mercury

The MERTIS instrument on the BepiColombo mission to Mercury provides such a high spectral resolution of up to 90 nm (Hiesinger et al., 2020; Hiesinger & Helbert, 2010). The measurement of SiO₂ on Mercury with the MERTIS instrument relies on our new calibration, since no reference samples are available. We will apply the calibration to global data of Mercury following the start of the science phase of the BepiColombo mission in 2027.

For now, CF data for the surface of Mercury is very limited. However, Earth-based observations provided an estimate for the CF at ~8.5 µm (Sprague, 2000). Based on our model this would equate to 37.4 wt.% SiO₂. This is significantly lower than previous estimates for the SiO₂ concentration on the surface of Mercury in the range of 49 to 60 wt.% SiO₂ (Vander Kaaden et al., 2017). These numbers were calculated from element ratios measured by the X-spectrometer and Si abundance measurements from the gamma-ray spectrometer on the MESSENGER mission (Evans et al., 2012; Nittler et al., 2018; Weider et al., 2015). Given the high uncertainty on the absolute Si abundances measured by gamma-ray spectrometry (24.6 ± 7 %), 25% have been used and oxide concentrations were then calculated based on assumed valence states (Nittler et al., 2011, 2018; Vander Kaaden & McCubbin, 2016; Weider et al., 2012, 2014). However, this approach does not account for the observed low O/Si ratio, which requires some of the Si to be hosted as a metallic or carbide phase (Iacovino et al., 2023; McCubbin et al., 2017). Our determined low SiO₂ abundance is in line with the hypothesis that significant amounts of Si are present in a reduced metallic or carbide phase. The X-ray spectrometer MIXS (Mercury Imaging X-ray Spectrometer) on BepiColombo will produce global chemical maps of Mercury, but these data will also primarily be elemental ratios (Bunce et al., 2020; Fraser et al., 2010; Martindale et al., 2023). Here, the new calibration of the CF will provide an independent quantification of the SiO₂ abundance on Mercury. Finally, the relationship between the CF and SiO₂ abundance will allow direct compositional constraints of terrestrial exoplanets with exposed rocky surfaces, following a recent analysis that suggested the measurement of CFs of exoplanets with the James Webb Space Telescope (First et al., 2025).

Acknowledgements. C.R. is funded by the European Union (ERC, ELMO, 101219152). Views and opinions expressed are however those of the author(s) only and do not necessarily reflect those of the European Union or the European Research Council. Neither the European Union nor the granting authority can be held responsible for them. A.M., I.W., and M.P.R. are supported by DLR grant 50 QW 2201A.

Open science statements

Author contributions

• Conceptualization: Renggli, Morlok
• Data curation: Weber, Reitze, Morlok
• Formal analysis: Renggli, Morlok, Weber
• Funding acquisition: Renggli, Hiesinger
• Investigation: Renggli, Morlok, Weber, Reitze, Di Rocco, Berndt, Pack
• Methodology: Renggli, Morlok, Pack
• Project administration: Renggli
• Validation: Renggli
• Visualization: Renggli
• Writing - original draft: Renggli
• Writing - review and editing: Morlok, Weber, Reitze, Di Rocco, Pack

Data availability Published infrared spectra and chemical compositions are available along with additional information in the MERTIS IRIS infrared spectral database with the IDs given in Table S1 at https://iris.uni-muenster.de/. The SiO₂ wt.% map, as well as the FTIR and Raman spectral files, are available on zenodo.org via https://doi.org/10.5281/zenodo.17940737.

Competing interests The authors declare no competing and financial interests.

Methods

Glasses were synthesized from reagent grade oxides (SiO₂, TiO₂, Al₂O₃, Fe₂O₃, and MgO) and CaCO₃, ground and mixed in ethanol. The mixtures were decarbonated at 1000 °C for 6 h in air, and reduced in a 1-atm CO-CO₂ gas-mixing furnace (Gero GmbH, Germany) in the experimental petrology laboratories at the University of Münster in Al₂O₃ crucibles at 1000 °C one logf O₂ unit above the Iron-Wüstite (IW) buffer to ensure that all iron was present as FeO in the mixtures.

The powders were mounted in a Ni holder and placed in vacuum (~6 ×10^-7 mbar) for the glass synthesis with a 50 W CO₂ laser focused to < 1 mm² on the powder mixtures. The laser system allowed heating above 2000 °C, which was required for the extreme glass compositions (Table S1). The laser was operated at only 7% of its power and targeted at the powders for ~30 s. These parameters were optimized in multiple attempts to obtain sufficient melting of the samples. The obtained beads have diameters in the orders of 500 µm and show variable degrees of quench crystallization (Fig. S1). However, the samples were sufficiently glassy to allow the measurements of the chemical compositions, Raman, and micro-FTIR (Fourier Transform Infrared Spectroscopy) measurements of homogeneous glass areas.

The obtained beads were mounted in epoxy resin and polished to a 1/4 µm finish and imaged with a JEOL JSM-IT510LA Analytical Scanning Electron Microscopy at the Max Planck Institute for Solar System Research (MPS). Back-scattered electron images were obtained to document the samples and test for the presence of quench crystals and homogeneous glassy areas. Here, we present the seven successful samples with sufficient homogeneous glass. Raman spectra were measured with a WITec alpha300 AR Raman microscope (50x objective) equipped with a 532 nm laser at the MPS. Spectra were accumulated for 1 s integration time and 30 repetitions at a laser power of 1 mW.

The chemical compositions of the glasses were measured with a JEOL JXA 8530 F Hyperprobe in wavelength-dispersive mode at the Institute for Mineralogy, University of Münster. Measurements were conducted at an acceleration voltage of 15 kV, a probe current of 10 nA, and a beam diameter of 10 µm, to minimize Na-loss. Both synthetic and natural standards were used for WDS. Hypersthene (Si), rutile (Ti), kyanite (Al), fayalite (Fe), San Carlos olivine (Mg), and diopside (Ca) were used as reference materials.

Mid-infrared reflectance spectra were measured with a dry-purged Hyperion 3000 FTIR microscope coupled to a Bruker Vertex 80v spectrometer in the Infrared & Raman for Interplanetary Spectroscopy Laboratory (IRIS) at the Institut für Planetologie, University of Münster (Weber et al., 2025). Spectra were collected over areas limited by a knife-aperture with 25 × 25 µm to 40 × 40 µm, and a N₂-cooled MCT detector. Spots of pure glass were chosen based on the electron microscopy images and Raman spots, as well as the reflectance mode of the Hyperion microscope. A flat gold mirror was used as the background reference. For each measurement 512 spectra were averaged and collated over the spectral range of 2.7 to 16.7 µm (3900 to 600 cm^-1) at a spectral resolution of 4 cm^-1.

Characterization of experimental samples

We synthesized seven glass-bearing samples with compositions ranging from 0.5 to 97 wt.% SiO₂. In Figure S1 we show backscattered electron images of the samples with the areas in which we measured the spectral properties indicated in colored boxes. All samples show crystals, for example from unmolten or only partially molten starting material surrounding the beads. In addition, the low SiO₂ and high Al₂O₃ glasses (D6 and D5) show extensive quench crystallization. However, in all samples we identified sufficiently extensive areas that are chemically homogeneous and fully glassy without any quench crystals that allowed chemical and spectroscopic characterization of glasses with extremely high and extremely low SiO₂ contents. The electron microscopy images show no crystalline features in the indicated areas, where we measured the MIR reflectance and Raman spectra.

The compositions of the glass areas indicated in Figure S1 are shown in Table S1 for the major element oxides. We obtain systematically low totals around 97 wt.% for the glasses with very low SiO₂ contents. This is likely due to unusual matrix properties of these materials. Nevertheless, we do not normalize the concentrations and use the measured SiO₂ wt.% concentrations in the discussion. The compositional range spans from 97.6 wt.% SiO₂ to 0.5 wt.% SiO₂. The silica poor samples are in turn rich in CaO with up to 33 wt.% (D5) and Al₂O₃ with up to 58.5 wt.% (D6). The samples C1 and C3 are similar in SiO₂ content (64.1 and 59.4 wt.%, respectively), but vary substantially in Al₂O₃, FeO, MgO, and CaO (Table S1).

The glassy nature of the sample areas investigated is confirmed by Raman spectroscopy, with the spectra shown in Figure S2. All spectra are characteristic for purely glassy materials, without any sharp Raman lines indicative for crystalline phases. The spectrum of C2 shows the characteristic features of pure SiO₂ glass. The minor peaks at 494 cm^-1 and 601 cm^-1, referred to as defect lines D₁ and D₂ and interpreted as 3- or 4-member SiO-ring structures, whereas the broad intensity maximum at 430 cm^-1 corresponds to bond bending, the broad peak at 820 cm^-1 to vibrations in the Si-O bond network, and the small and very broad band above 1000 cm^-1 to the fully polymerized network of SiO\(^{4-}_4\) tetrahedra (Geissberger & Galeener, 1983; Little et al., 2008). The broad bands at 800 to 1200 cm^-1 in the spectra C1, C3, D7, C8b, D6, and D5 are assigned to Si-O and Al-O stretching in the SiO₄ and AlO₄ tetrahedra with contributions from different degrees of polymerization, whereas bands at lower wavenumbers are related to inter-tetrahedral and rocking vibrations in the network (McMillan, 1984).

The mid-infrared spectra of the glasses, including the CF positions, are shown in Figure S3. The spectra show broad bands expected for glasses and similar to the Raman spectra. The reflectance maxima, referred to as main bands are also compositionally dependent. The maxima range from 8.2 µm for the silica glass C2 to >12.1 µm for the Si-poor glasses D7, C8b, D6, and D5. The observed band positions in the mid-infrared can be assigned to spectral units (Dalby & King, 2006). In the high SiO2 range the main bands at ~ 9.1 µm correspond to a fully polymerized network of tetrahedral units. In contrast, main band positions at ~ 12 µm are due to depolymerized SiO₄^4- units (\(\nu {}\)₁ symmetric Si–O stretch), observed in the low SiO₂ glasses. The spectra were processed using Python open-source packages (Hunter, 2007; Virtanen, 2020). The CF was identified by determining the position of lowest reflectance by finding the low-point in a given spectrum using the Pandas data analysis library (McKinney, 2010). The measured positions of the CFs are listed in Table S1.
